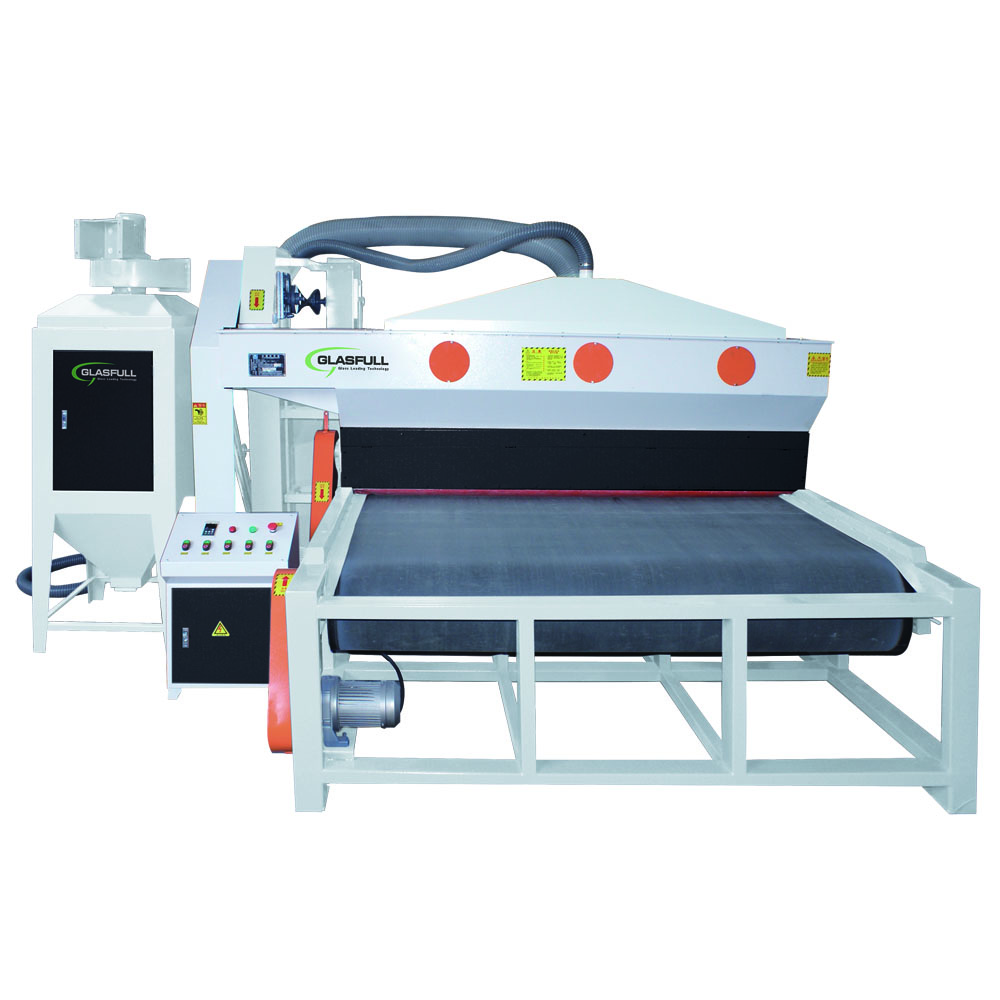

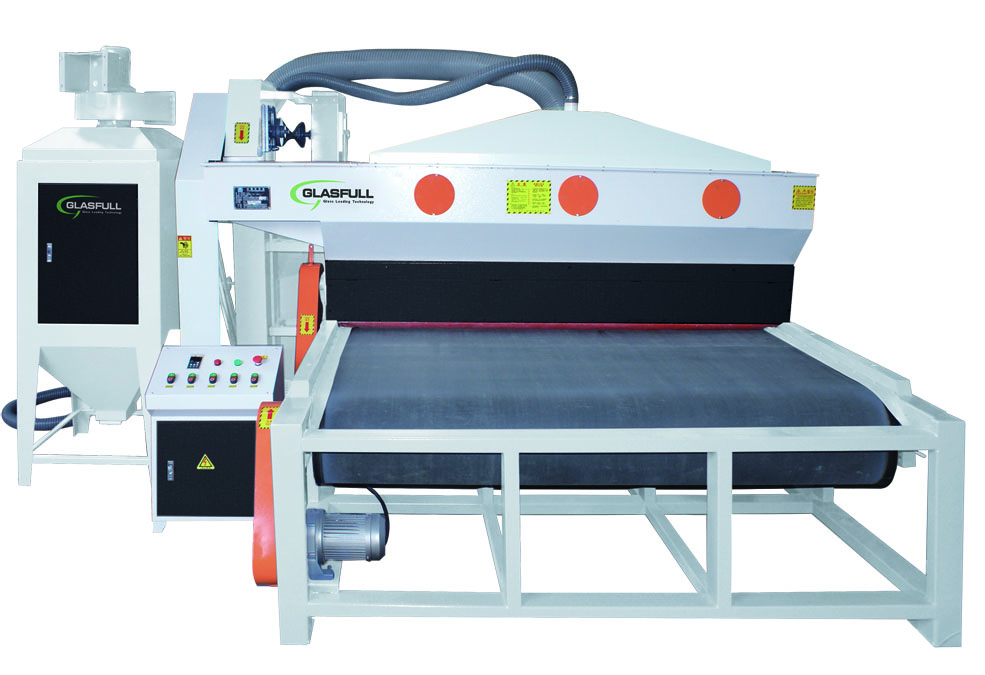

GM-WPS2000Horizontal glass automatic sandblasting machine
GM-WPS2000Horizontal glass automatic sandblasting machine
Technial parameters
| model | GM-WPS1300 | GM-WPS 1800 | GM-WPS 2000 | GM-WPS 2600 |
| Dimension | 3000x2100x1850mm | 3450x2600x1850mm | 3710x2850x1850mm | 4210x3450x1850mm |
| Max. glass width | 1200mm | 1700mm | 1900mm | 2500mm |
|
Min. Size Glass |
100x100mm | 100x100mm | 100x100mm | 100x100mm |
| Glass Thickness | 3-25mm | 3-25mm | 3-25mm | 3-25mm |
| Output•M2/Hr | 43.2 SQM | 61.2 SQM | 68.4 SQM | 90.0 SQM |
| Power | 2.76 kw | 3.74 kw | 5.90 kw | 7.85 kw |
| Weight | 1800 kg | 1900 kg | 2150 kg | 3200 kg |
